Packaging Details : By Pallet or As Request
Wall Panel : 50mm/75mm/100mm Rockwool Sandwich panel
Roof Panel : 50mm/75mm/100mm Rockwool Sandwich panel
Model Number : YGKL22
MOQ : 150㎡
Supply Ability : 20000-30000 ㎡
Main Structure : H-Beam, Q355B Section Steel
Steel Frame : Square Tube Columns, Q235 Steel, Galvanized Steel with Powder coated painting
Door : Insulated Steel door, 850mm*2030mm
Certification : ISO;CE
Delivery Time : 24-45Days
Window : PVC sliding window with double glas, with screen and window blind
Payment Terms : L/C,T/T
Place of Origin : CHINA
Brand Name : YAGO Industry
Premium modular accommodation solution designed specifically for hotel and resort applications, featuring robust construction and luxury amenities.
Guest privacy and comfort are achieved by using high-density Rockwool sandwich panels up to 100mm thick for the walls and roof. Additionally, the PVC sliding windows are fitted with double glazing, creating an efficient sound barrier against outside noise.
Yes. The building uses a smart layout that splits wet and dry zones. The bathroom ceiling is made of moisture-resistant calcium silicate boards with a dedicated keel system, and the floor is finished with waterproof ceramic tiles to prevent any mold growth.
Absolutely. Every PVC sliding window unit comes pre-installed with double-pane glass, an insect screen, and custom built-in window blinds. This allows hotel guests to effortlessly adjust the light levels and privacy of their room.
Yes, safety is a priority. The integrated power system features dedicated, heavy-duty electrical cables for air conditioning and water heaters. The entire grid connects to a power distribution cabinet equipped with a highly sensitive earth-leakage protective device.
The units require minimal site preparation due to their rigid Q235 square tube framework. They are secured directly into simple concrete bases or foundations using M16 chemical anchor bolts, making them ideal for eco-resorts with uneven or sensitive terrain.
| Item | Specification |
|---|---|
| Main Steel Frame | |
| Steel frame | Square Tube Columns, Q235 Steel, Galvanized Steel with Powder coated painting |
| Steel structure roof | C Section Steel, Q235 Steel, galvanized |
| Roof Purlin | C Section Steel, Q235 Steel, galvanized |
| Wall purlin | C Section Steel, Q235 Steel, galvanized |
| Cross bracing | L40*3 |
| Anchor bolts | M16, chemical Bolts |
| Ordinary bolt | 4.8S, Zincification |
| Roofing and Wall System | |
| Roof Panel | 50mm/75mm/100mm Rockwool Sandwich panel |
| Wall Panel | 50mm/75mm/100mm Rockwool Sandwich panel |
| Ceiling & Flooring | |
| Dry room Ceiling | Gypsum board, with frame |
| Dry room Floor leather | Vinyl floor leather |
| Wet room Ceiling | Calcium silicate board Ceiling with Ceiling keel |
| Wet Ceramic tile | Ceramic Tiles |
| Doors & Windows | |
| Door | Insulated Steel door, 850mm×2030mm |
| Window | PVC sliding window with double glass, with screen and window blind |
| Electric Unit and Sanitary Facilities & Plumbing | |
| Electric cable | With electrical cable for lighting, socket, AC and water heater system |
| Lights | LED light 220V, 60HZ |
| Switch | with junction box |
| Socket | 10A and 16A, with junction box |
| Power distribution cabinet | box+switch+earth leakage protective device |
| Toilet | including water valve |
| Washbasin | including faucet, water pipe |
| Shower | With shower head, water mixture, and shower base |
| Water pipe | input and output water pipe |



|
|

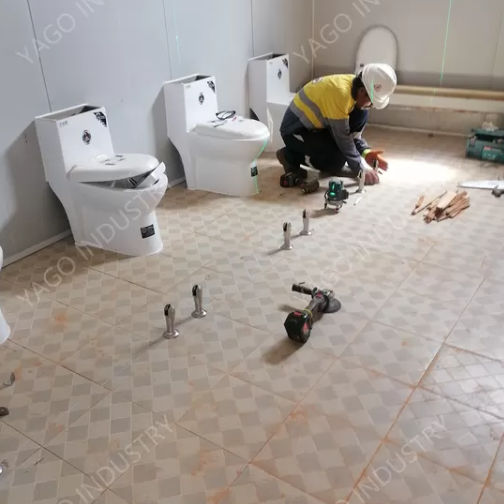

Customized Prefab Portable Folding Houses Modular Homes Accommodation Images |
