Place of Origin : China
Wall Panel Thickness : 50/75/100mm Rockwool
Model Number : YGCY29
Door Dimensions : 850mm X 2030mm
Delivery Time : 25-45days
Certification : ISO;CE
Brand Name : YAGO INDUSTRY
Window Type : PVC Double-glazed With Screen
Electrical Sockets : 10A/16A With Junction Box
MOQ : 150M2
Supply Ability : 20000-30000M2/month
Roof Panel Thickness : 50/75/100mm Rockwool
Steel Frame Material : Q235 Galvanized Square Tube
Payment Terms : T/T,L/C
Packaging Details : By Pallet or As Request
This dry safe temporary construction camp is a waterproof, fast‑assemble, comfortable worker living quarters, designed for construction sites. It features dry interior, high safety, reliable waterproofing, quick assembly, and comfortable living, ideal for worker temporary accommodation.
This dry safe temporary construction camp is a high‑quality waterproof fast‑assemble comfortable worker living quarters. Built with a reinforced galvanized steel frame, it delivers excellent structural safety and stability. The fully sealed waterproof system prevents rainwater penetration, keeping the interior dry even in heavy rain. Adopting modular flatpack design, it can be assembled quickly in a short time, saving labor and time. High‑quality insulated panels provide comfortable temperature, while the humanized layout ensures daily living convenience. Safe, dry, waterproof, and fast‑built, it is a reliable choice for construction worker living quarters.
| Project name: Senior and Junior Management building | |
| Item | Specification |
|---|---|
| Main Steel Frame | |
| Steel frame | Square Tube Columns, Q235 Steel, Galvanized Steel with Powder coated painting |
| Steel structure roof | C Section Steel, Q235 Steel, galvanized |
| Roof Purlin | C Section Steel, Q235 Steel, galvanized |
| Wall purlin | C Section Steel, Q235 Steel, galvanized |
| Cross bracing | L40*3 |
| Anchor bolts | M16, chemical Bolts |
| Ordinary bolt | 4.8S,Zincification, |
| Roofing and wall System | |
| Roof Panel | 50mm/75mm/100mm Rockwool Sandwich panel |
| Wall Panel | 50mm/75mm/100mm Rockwool Sandwich panel |
| Ceiling & Flooring | |
| Dry room Ceiling | Gypsum board,with frame |
| Dry room Floor leather | Vinyl floor leather |
| Wet room Ceiling02 | Calcium silicate board Ceiling with Ceiling keel |
| Wet Ceramic tile | Ceramic Tiles |
| Doors&windows | |
| Door | Insulated Steel door, 850mm*2030mm |
| Window | PVC sliding window with double glas, with screen and window blind |
| Electric unit and sanitary facilities&plumbing | |
| Electric cable | With electrical cable for lighting, socket, AC and water heater system. |
| Lights | LED light 220V,60HZ |
| Switch | with junction box |
| Socket | 10A and 16A , with junction box |
| Power distribution cabinet | box+switch+earth leakage protective device |
| Toilet | including water valve |
| Washbasin | including faucet, water pipe |
| Shower | With shower head, water mixture, and shower base |
| Water pipe | input and output water pipe |


Q: Can it keep dry in continuous rainy days?
A: Yes, fully sealed waterproof and anti‑moisture design keeps interior dry.
Q: Is it safe in strong storms?
A: Yes, reinforced steel frame ensures stability in bad weather.
Q: Does it get moldy in humid environments?
A: No, anti‑moisture materials prevent mold growth.
Q: Can we move it after rain?
A: Yes, waterproof design allows safe relocation anytime.
Q: Is cleaning easy after rainy days?
A: Yes, smooth waterproof surfaces are easy to clean.
|
|

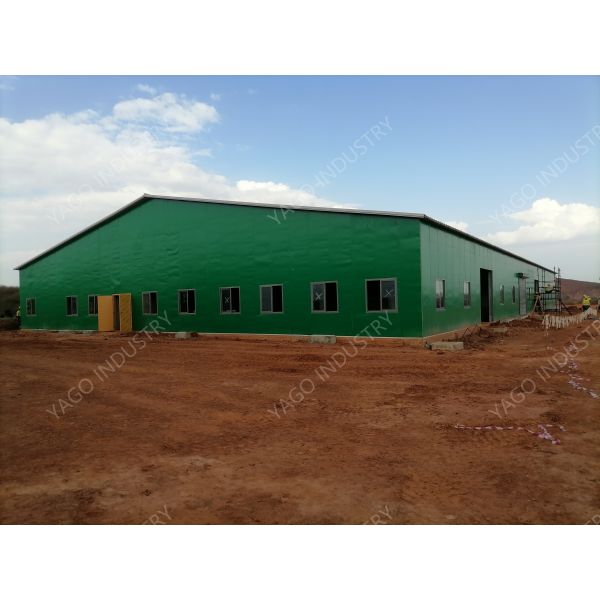

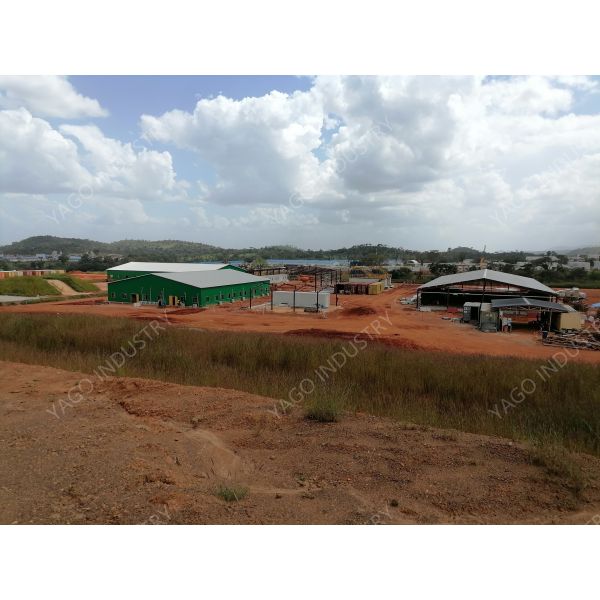

Waterproof Temporary Construction Camp Accommodation Prefab house For Sites Images |
